  • Delivery of XCMG 60 ton truck crane

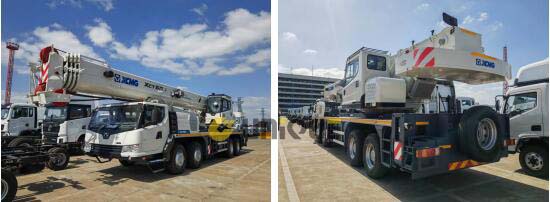

Recently, one unit customized  60 ton right hand drive truck crane XCT60-Y was delivered to client by sea.

1 拷贝.jpg

Telescopic truck crane XCT60_Y is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Performance Characteristics:

1. Telescopic crane XCT60_Y adopts 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 60 t; the max. lifting height is 59.8 m; The performance takes the lead comprehensively.

2. Telescopic truck crane XCT60_Y is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.

3. Abundant configurations suitable for various working conditions, meet the requirements of applications such as all oil fields and government projects.



Item

Unit

Parameter

Dimensions (length x width x height)

mm

14090×2790×3630

Total vehicle mass in travel configuration

kg

42200

Axle load

1st and 2nd axle

kg

16200

3rd and 4th axle

kg

26000

Engine rated power/rpm

kW/(r/min)

247/2200

Max. output torque/rpm

N.m/(r/min)

1350/1100-1600

Max. travel speed

km/h

90

Min. turning diameter

m

24

Min. ground clearance

mm

250

Approach angle

°

18/10 (front protective device included)

Departure angle

°

13

Max. grade ability

%

36

Fuel consumption per 100 km

L

36

Max. total rated lifting capacity

t

60

Min rated working radius

m

3

Max. load moment

Base boom

kN.m

2009

Fully-extended boom

kN.m

1113

Outrigger span

Longitudinal

m

6.1

Lateral

m

7.1

Hoist height

Base boom

m

11.3

Fully-extended boom

m

43.6

Boom length

Base boom

m

11.5

Fully-extended boom

m

44

Jib offset angle

°

0、15、 30

Boom raising time

s

≤40

Boom fully extending time

s

≤90

Hoistin
Hoisting speed (single line, 4th layer, no load)

Main winch

m/min

≥130

Auxiliary winch

m/min

≥130
