  • Delivery of 18m insulated boom aerial work vehicle

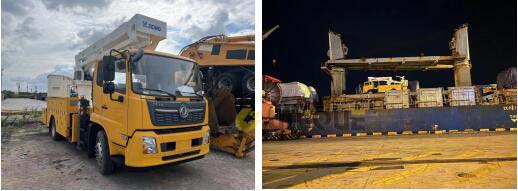

Recently, one unit  18m insulated boom aerial work vehicle was delivered to client by sea.

1 拷贝.jpg

Main features

1. Heavy insulating booms: rigidity and carrying capacity, extending the service life

2. Convenience: electrical control of outriggers, automatic unfolding and leveling

3. Hydraulic power generation system can prolong continuous working time

4. Excellent performance in insulating and anti-interference: technology of fiber-optic communication

5. Two control systems respectively in the platform and the rotary table, starting or stopping the engine remotely

6. Strong operability: electro-hydraulic proportional control, and stepless speed regulation

7. Working platforms can flip over vertically for dumping things

8. Working platforms can be close to the ground, for people to get in or out conveniently

9. No linkage between booms and outriggers, and protective device against outriggers’ instability

10. Built-in transmission system and telescopic cylinders

11. Hydrostatic leveling system making sure that the working platform is in a horizontal position

Parameters

Max. working height



18.2 m

Max. working radius



10.7m

Rated load of working platform



272Kg

Rotation angle of the rotary table



±360°continuous rotation

Rated line voltage



35kV(American standard:46kV)

Rotation angle of working platform



±90°continuous rotation

Max. lifting capacity



454kg

Max. lifting height



18m

Slewing speed



0~2 r/min



Span of outriggers



Horizontal legs



4110mm



Vertical legs



4230mm

Size in driving (length*width*height)



8390mm×2465mm×3580mm
