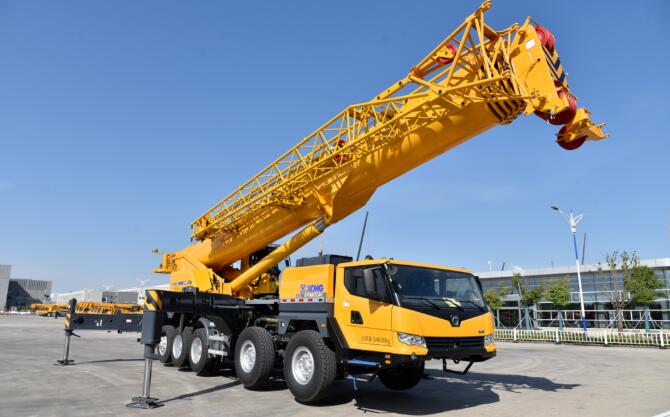

Truck crane QY100K7C, main boom 75 meters + main boom extension section 14m + jib 17.5 meters, the maximum boom length can reach 101.6 meters, the counterweight is 39t, the lifting performance is improved again:

The arm length is 23.2 meters, the amplitude is 10 meters, and the hoisting weight is 38 tons

The arm length is 27.9 meters, the amplitude is 12 meters, and the hoisting weight is 31 tons

The arm length is 32.6 meters, the amplitude is 22 meters, and the hoisting weight is 15 tons

The arm length is 46.7 meters, the amplitude is 20 meters, and the hoisting weight is 16 tons

The arm length is 60.7 meters, the amplitude is 24 meters, and the hoisting weight is 10.3 tons

The arm length is 70.1 meters, the amplitude is 32 meters, and the hoisting weight is 6 tons

The arm length is 75 meters, the amplitude is 22 meters, and the hoisting weight is 7.5 tons

Enhanced driving ability and load-carrying ability

430 horsepower engine and 10-speed full synchronizer gearbox, with five-axle heavy-duty chassis, the industry's most compact wheelbase and a special cylinder-controlled steering system for truck cranes, three-wheel drive and three-turn, the minimum turning diameter of the whole machine is less than 23m. It can carry 28t counterweight, hook, jib, and auxiliary roll for transition. It has the largest load among the products of the same level, and the transition is economical and efficient!

Rich configuration and enhanced security

QY100K7C provides a variety of hook configurations, equipped with a 2.9-meter independent boom head, and an auxiliary winch, which is convenient for switching and more efficient in work; the hoisting mechanism adopts high-strength anti-rotation steel wire rope dedicated to large tonnage, and the maximum single rope pulling force can reach 8.4 t, high anti-rotation performance. Various configurations ensure high adaptability and high reliability of the operation.
