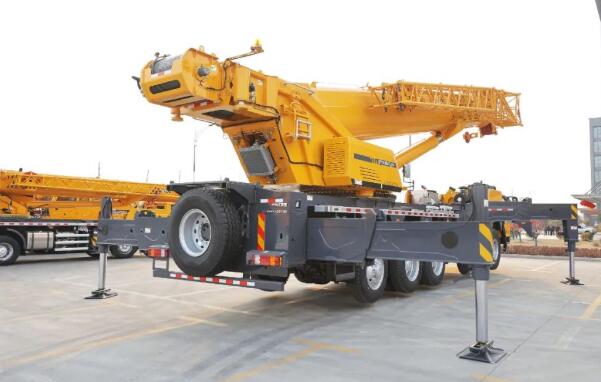

The  truck crane QY110K8C has a main boom of 85 meters, a maximum boom height of 108.6 meters, and a maximum boom weight of 4.2t at full extension. It can meet the requirements of external air conditioners for 28-story buildings, tower crane disassembly and assembly.

Standard 460-horsepower high-power Weichai engine and 12-speed AMT automatic transmission, vulgar high-torque power transmission system, strong power, the maximum grade is more than 45%º, three, four and five axles are driven in series, reducing the transmission path, transmission efficiency High, dual fuel tank design, the volume reaches 500L, and the endurance is stronger.

The first and second axles adopt traditional and reliable mechanical pull rod and hydraulic power steering system, and the fifth axle adopts the cylinder-controlled steering system for truck cranes, which can automatically or manually switch between the two steering modes of rear axle locking and small turning, and the high-speed driving is stable and reliable. The vulgar driving is flexible and flexible. The cylinder-controlled steering transmits the steering force through the hydraulic system, and the system has high reliability.

385/95R25 large tires on the front axle, 325/95R24 tires on the rear axle, among which the three- and four-axle twin tires have a larger ground contact area and a stronger load capacity of the whole machine. It can carry 24t counterweight for heavy-duty transitions during short-distance transitions. 60% of the working conditions, convenient and efficient use, more economical operation.
